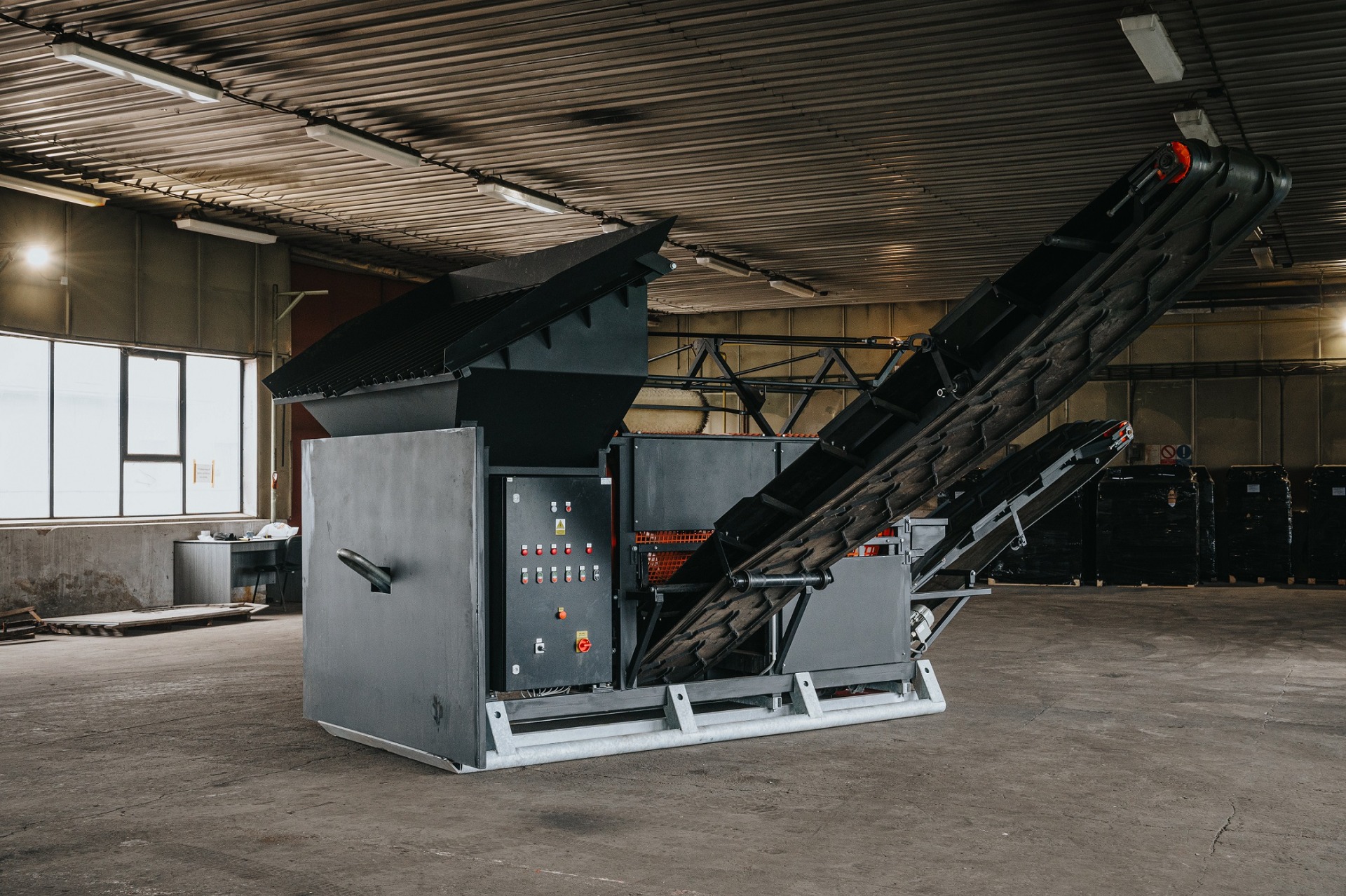

Drum mobile sorter dms4PRO

Drum mobile sorter dms4PRO

Mobile drum sorting equipment of smaller dimensions is designed for companies that deal with earthworks, composting, gardening and recycling activities, as well as for construction companies. It is used for sorting soil (non-stick materials), gravel, small metals up to 100 mm in length, construction debris and composting.

Benefits:

  • Easy preparation
  • Simple and robust construction
  • Easy operation and handling
  • Economic operation

Technical description of the machine

  • Drive: Plug-in electric motors MOTORGEAR, power input 2.4 kW, voltage 400 V
  • Hardox drum - 2 sieves: Mesh size 8 - 16 - 22 - 32 - 36 - 64 - 90
  • Transmission: El. motors
  • Frame: Closed profiles
  • Surface: Combination of hot dip galvanizing + paint
  • Hardox hopper: Folding front on the hopper side
  • Feeder: Conveyor
  • Continuous regulation of material and conveyor movement
  • Input: max. 90 mm
  • Exit: 2 basic screens - 3 fractions, conveyor belts
  • Weight: approx. 2.5 t
  • Output: max. 40 m³/h (according to humidity, material and size of screens)
  •

Machine dimensions:

  • Hopper volume: 1,0 m³

  • Side conveyors: 0,6 x 4,3 m

  • Rear conveyor: 0,5 x 3 m

  • Dimensions when folded: length 4 m, width 3.6 m, height 2.4 m

Optional accessories

  • Generator with an output of 6.8 kWh

  • Lockable tool box
  • Interchangeable drum (2 sieves)
  • Coarse screen with separator
  • Possibility to choose the mesh size of the sieve in the drum

Drum mobile sorter dms4PRO in action
